5 Burners

• 5 high-efficiency gas burners allow you to cook multiple dishes at once

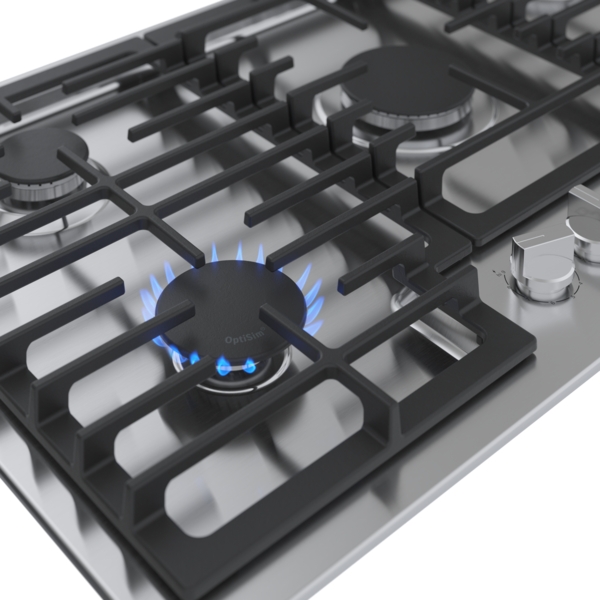

OptiSim® Burner

• the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.

Easy to clean

• low-profile cooking surface keeps spills contained and makes clean-up easier than ever.

Continuous Cast Iron Grates

• makes it easy to slide pots & pans from burner to burner.

General

Product group : Hob

Brand : Bosch

Product name / series name : gas hob w integrated controls

SKU : NGM5659UC

Internal article number : NGM5659UC

EAN code : 4242005455102

Construction type : Built-in

Type of control : Mechanical

Type of control : Front;sword knobs

Energy input : Gas

Total number of cooktop burners : 5

Number of gas burners : 5

Number of electric cooking zones : 0

Number of electric elements : 0

Number of radiant elements : 0

Number of halogen elements : 0

Number of induction elements : 0

Number of electric warming zones : 0

Location of control panel : Front

Gas type : Natural gas 15 mbar (USA)

Alternative gas type : Liquid gas 27,5 mbar (USA)

Basic surface material : Stainless Steel

Power Cord Length : 40''

Color of frame : Stainless Steel

Gas connection rating (W) : 12100

Current (A) : 15

Overall appliance dimensions (HxWxD) : 3 13/16'' x 37'' x 21 1/4''

Volts (V) : 120

Frequency (Hz) : 60

Power cord length (cm) : 101.6

Plug type : 120V-3 prong

Location of gas connection : Bottom, Rear, Right

Height of the packed product (mm) : 210

Width of the packed product (mm) : 610

Depth of the packed product (mm) : 1020

Minimum height for installation (mm) : 486

Maximum height for installation (mm) : 486

Minimum width for installation (mm) : 887

Product packaging dimensions (HxWxD) : 8 3/8'' x 43 1/8'' x 24 3/4''

Maximum width for installation (mm) : 887

Depth for installation (mm) : 97

dishwasher safe pan support : No

Net weight (kg) : 11.1

Gross weight (kg) : 14.1

Highlights : Wok burner

Automatic programmes : No

Location of the heating element : front left

Type of heating element : Gas

Power of the heating element : 1

Location of 2nd heating element : center left

Location of 3rd heating element : back left

Type of 3rd heating element : Gas

Power of 3rd heating element (kW) : 1.75

Location of 4th heating element : middle back

Location of 5th heating element : back right

Knob Material : Full metal

Type of 5th heating element : Gas

Power of 5th heating element (kW) : 3

Location of 6th heating element : center right

LP Gas Connection Rating : 41400

Power on indicator : Yes

Plate on indicator : 0

Minimum distance from counter front : 1 7/8''

Minimum distance from rear wall : 3''

Type of regulation : Step energy regulated

Type of lid : Without

Total BTU load : 41400

Required cutout size (HxWxD) : 3 13/16'' x 34 15/16'' x 19 1/8''

Type of safety device for gas : Electromagnetic for each burner

Number of Double grates : 2

Ignition system : Yes

Number of Single grates : 1

Residual heat indicator : Without

Main on/off switch : No

Safety device : Thermo-electric

Timer : No

Included accessories : 1 x nozzle set for liquid gas, 3 x cast iron pan support

Power of 1st burner : 3400

Optional accessories : HEZ298102, HEZ9GR58UC

Power of 3rd burner : 6000

Additional Image 1 : https://media3.bsh-group.com/Product_Shots/3000x3000/19251176_NGM5658UC_Knobs_and_Bezel_def.jpg

Power of 5th burner : 10300

Additional Image 2 : https://media3.bsh-group.com/Product_Shots/3000x3000/19251177_NGM5658UC_w_Flames_Center_Burner_def.jpg

Additional Image 3 : https://media3.bsh-group.com/Product_Shots/3000x3000/19251183_NGM5658UC_w_Flames_OptiSim_Burner_1_def.jpg

Additional Image 4 : https://media3.bsh-group.com/Product_Shots/3000x3000/19372656_NGM5658UC_Boiling_Water_1_def.jpg

Additional Image 5 : https://media3.bsh-group.com/Product_Shots/3000x3000/19372654_NGM5658UC_Fish_and_Veggies_1_def.jpg

Power of 6th burner : 6000

Additional Image 6 : https://media3.bsh-group.com/Product_Shots/3000x3000/19372659_NGM5658UC_Melting_Chocolate_1_def.jpg

Additional Image 7 : https://media3.bsh-group.com/Product_Shots/3000x3000/19372670_NGM5658UC_Full_Frame_1_def.jpg

Sealed Burners : Yes

UPC code : 825225972594

Gross weight : 31.000

Net weight : 24.000
